  • RETESTADORAS

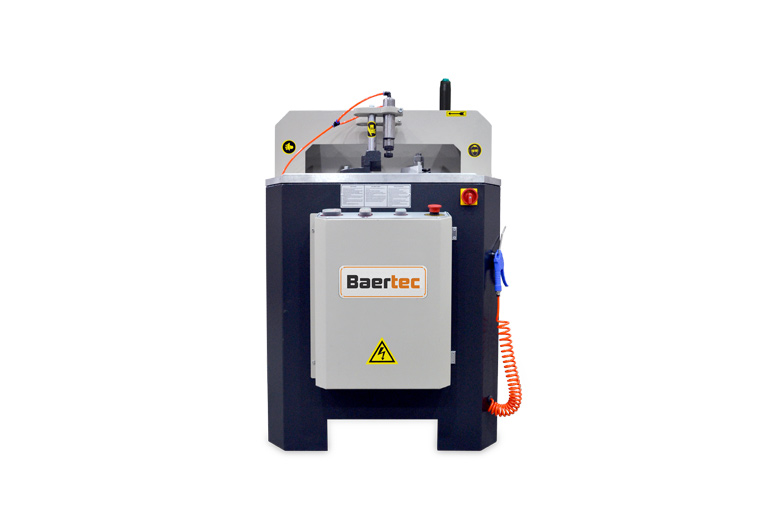

  • 2OM 001 / Retestadora Sencillos

Description

  • For end milling of transom in PVC and Aluminum profiles.
  • Automatic feed of the milling unit.
  • Ability to route at varying angles up to 45° left and 30° right.
  • Vertical pneumatic profile clamping system enables optimum work piece fixing.
  • Positioning of the tools with pneumatic feed cylinder.
  • Without changing the cutter set, two different series of transom profiles can be processed.

      OPTIONAL

  • Cooling system for aluminum profiles.
  • Hydro-pneumatic feed system to route aluminum profiles.

Technical Features

  • Power supply: 400 V,  3ph, 50-60 Hz
  • Power output: 1,1 kW
  • Max. cutter diameter: 160 mm.
  • Spindle speed: 3,000 r.p.m.
  • Max. routing height: 90 mm.
  • Max. routing depth: 30 mm.
  • Max. profile width: 120 mm.
  • Max. profile height: 90 mm.
  • Air pressure: 6-8 bar
VIDEOS 2OM 001 / Semi Automatic End Milling Machine Single Series
