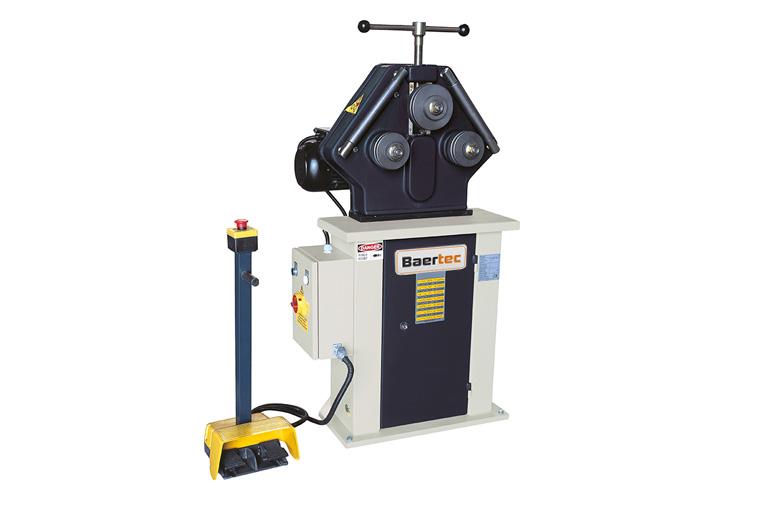

  • BB30 Motorised Profile And Section Bending Machine

General Specifications:
Ideal for making flanges, greenhouses, balausters, tables, chairs, doors, windows...., making a great number of circular shape in all kinds of profiles.

Standard Specification

▪ Steel frame
▪ Reducer driven gear system
▪ Top roll idle
▪ Top roll up and down movement by hand
▪ Bottom rolls fixed and powered
▪ Rolls and shafts are made of SAE 1050 quality steel
▪ Rolls and shafts are hardened and grinded
▪ Able to bend flat bars and box sections with standard rolls
▪ Standard rolls are interchangeable to adjust gap for bending
▪ Standard guide rolls
▪ Able to work both horizontal and vertical position
▪ Users manual book in English or Turkish
▪ CE certificate

Additional Accessories

▪ Pipe bending rolls for different sizes
▪ Angle bending rolls (leg in and led out)
▪ Aluminium bending rolls made of DELRIN
▪ Angle guide rolls
▪ C-S Benging attechment for wrought iron
▪ Bar twisting attechment for wrought iron

Option:

Bending apparatus
Angled side armrest

Technical Features

  • Power supply: 400 V, 3 ph, 50-60 Hz
  • Power output: 0,75 Kw
  • Top Roll Diameter: Ø 148 mm
  • Lower Rolls Diameter : Ø 118 mm
  • Shaft Diameters:Ø 30 mm
  • Machine Height: 1,450 mm
  • Machine Length: 800 mm
  • Machine Width  600 mm
  • Machine Weight  250 kg
