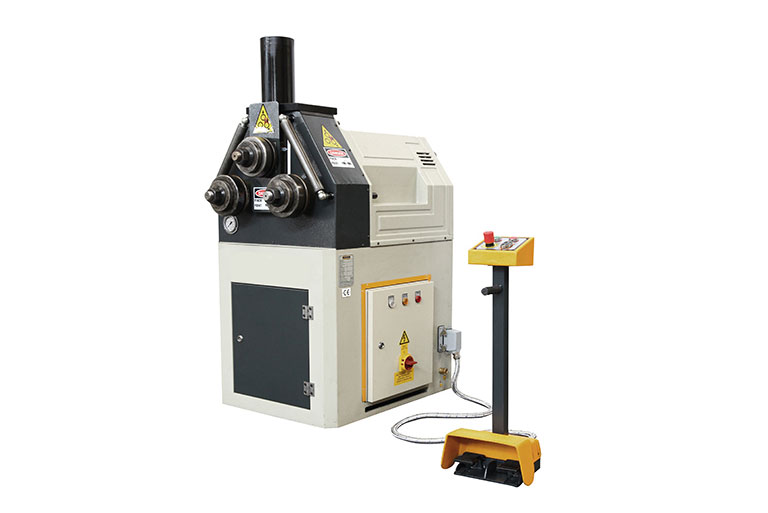

  • BHB50 Hydraulic Profile And Section Bending Machines 50'

General Specifications

  • Steel Frame
  • Reducer driven gear system
  • Top roll idle
  • Top roll up and down movement hdraulic
  • Bottom rolls fixed and powered
  • Rolls and shafts are made of SAE 1050 qaulity steel
  • All rolls and shafts are hardened and grinded
  • Able to bend flat bars and box sections with standart roll
  • Standart rolls are interchangeable to adjust gap for bending
  • Standart guide rolls
  • Able to work both horizontal and vertical position
  • User manuel book in English

Optional

  • Pipe bending rolls for different sizes
  • Angle bending rolls (leg in and leg out)
  • Aluminium bending rolls made of DELRIN
  • Digital read out for top roll
  • Angle guide rolls
  • Speed variator

Technical Features

  • Shaft Diameters : Ø 50 mm
  • Lower Rolls Dimaters : Ø 162 mm
  • Top Rolls Dimaeter : Ø 152 mm
  • Hydraulic Power:16 Ton
  • Workin Speed:4 m/min
  • Power:1,12 kW
  • Lenght:800 mm
  • Widht:650 mm
  • Height:1500 mm
  • Weight:550 kg
  •
