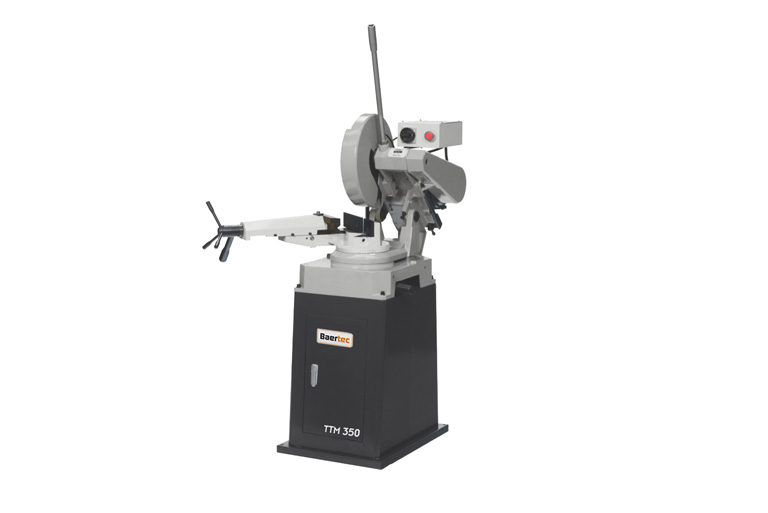

  • TTM350 / Metal Serrar Máquina 350

General Specifications

  • Stationary cutting machine with cutting disc for solid metarials and profiles
  • Solid and forceful construction
  • Easy to operate

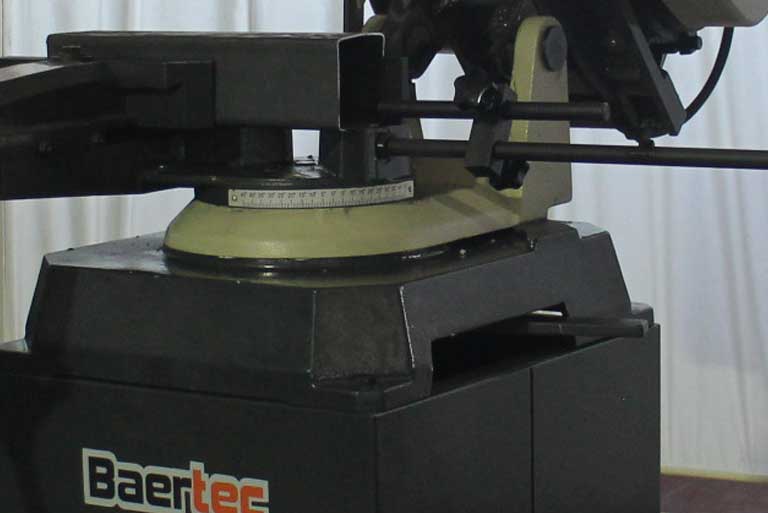

  • Turnable saw head 45 degree to left and right
  • Control handle with safety switch
  • Emergency stop button
  • Safety regulations according to CE standartd

Technical Features

  • Power supply: 400 V, 50 Hz , 5kw
  • Cut off wheel diameter : 350 mm
  • Cutting range round : 100 mm
  • Cutting range at 90 degree square : 100 x 100 mm
  • Vice Open : 100 mm
  • Cutting range at 90 degree rectangular:120 x 90 mm
  • Revolution Speed: 5400 min/
  • Machine height: 1,700 mm
  • Machine length: 970 mm
  • Machine width: 620 mm
  • Machine weight: 230 kg
