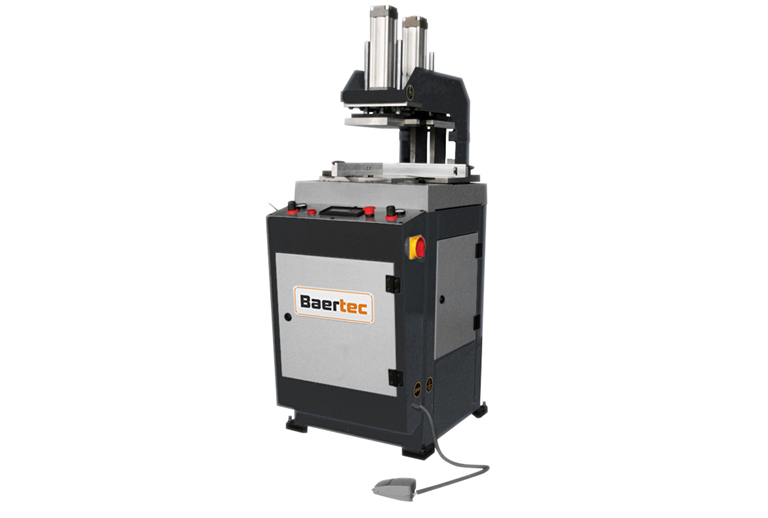

  • V Type Soldadora de un Cabeza

 Description

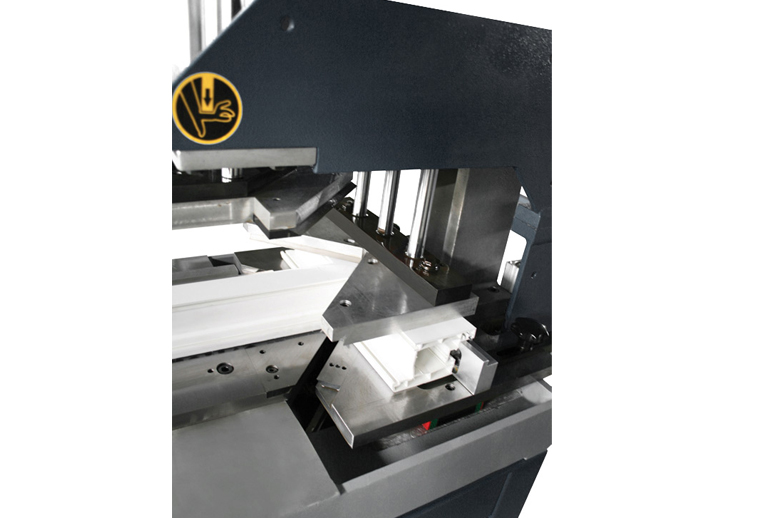

  • V Type Welds transom profile to frame profile.
  • Welding angle is fixed at 90°.
  • Welds white profiles
  • All operations can be controlled automatically.
  • Heating and waiting time can be adjusted digitally.





Technical Features:

• Power supply: 230 V, 50-60 Hz

• Power output: 1.5 kW

• Max. Profile Width: 100 mm

• Max. Profile Height: 130 mm

• Air pressure: 6-8 bar

• Air consumption: 20 l/min.

• Machine Height: 1,450 mm

• Machine Length: 920 mm

• Machine Width: 710 mm

• Machine Weight: 295 kg
