  • TRONZADORA DE PERFILES

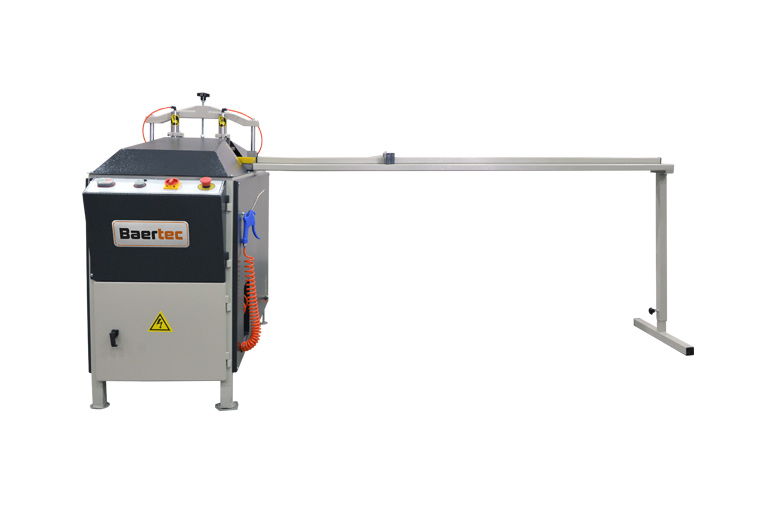

  • V Type Tronzadora de Junquillos

 Description

  • Two 45° angled saw blades with 200 mm. diameter, V-cuts PVC profiles for V-welding.
  • The cutting depth can be set easily.
  • The adjustable saw blade feed enable fast and precise cutting with rapid return.
  • Horizontal pneumatic clamps are positioned opposite of the movement direction to ensure optimum profile fixing.

Technical Features

  • Power supply: 400 V, 3ph, 50-60 Hz
  • Total power output: 1,5 kW (0.75 kW x 2)
  • Spindle speed: 2,800 r.p.m
  • Air pressure: 6-8 bar
  • Air consumption: 60 l/min.
  • Machine height: 1,110 mm
  • Machine length: 450 mm (+2,000 mm. left, + 2,000 mm. right conveyor)
  • Machine width: 1,110 mm
  • Machine weight: 170 kg
