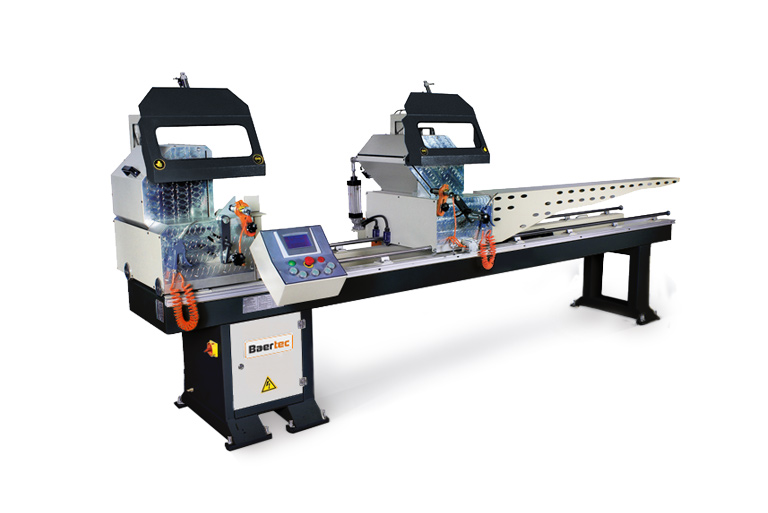

  • 2CO ALC 420-S / Double Head Mitre Saw 420 mm (Special)

Description

  • For PVC and Aluminum profiles cutting.
  • Max. cutting Length: 4,350 mm
  • Double-hand system

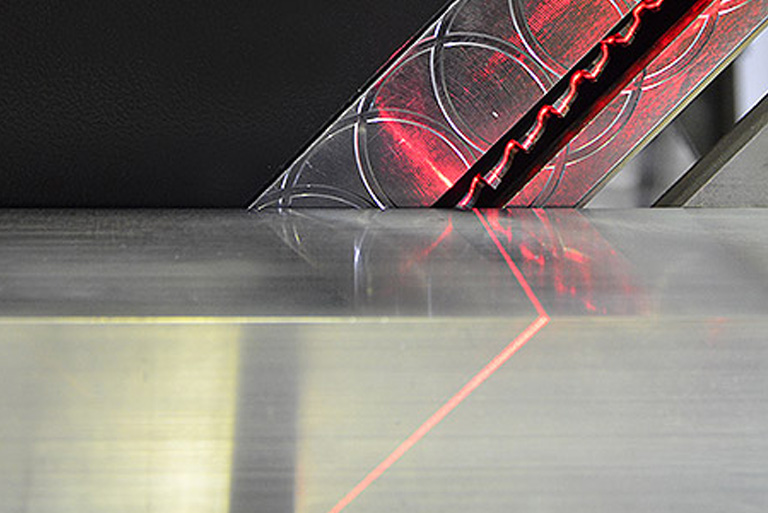

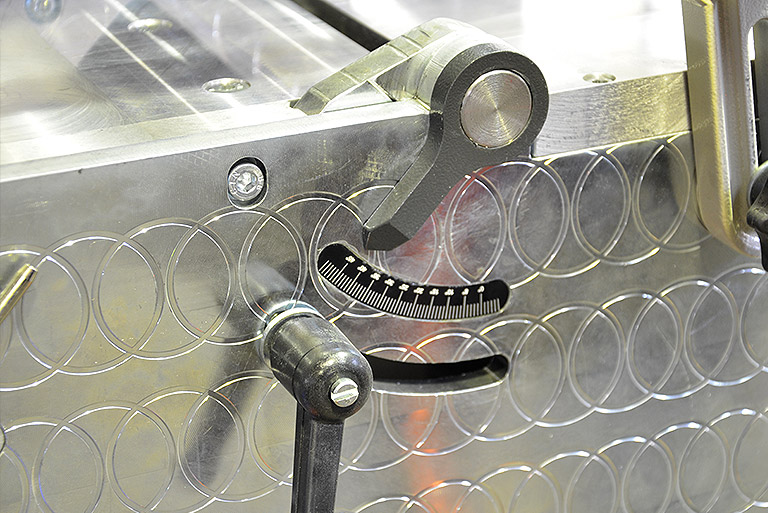

  • Ultimate cutting quality. Automatic tilt movement of the saw heads to 45° and 90°. Angles between 45° and 90° can be adjusted manually and fixed easily.
  • The 420 mm. saw blade diameter enables to cut wide profiles as well as two 60 mm. profiles at the same time.
  • The saw blade feed speed can be adjusted.
  • Fixed profile support conveyor on the mobile right prvides work piece stability

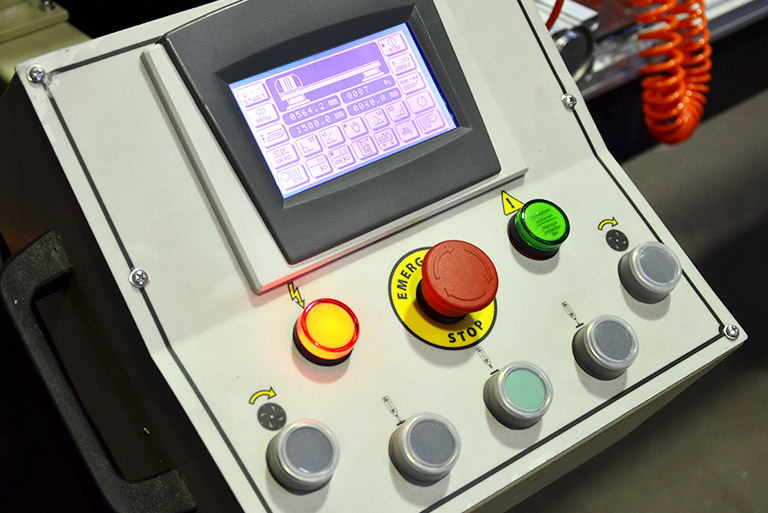

  • Right - Left move Touch Screen control Automatic

Optional

  • Barcode printer.
  • Cooling system to cut aluminum profiles.
  • Hydro-pneumatic system for aluminum profiles.

Technical Features

  • Power supply: 400 V, 3ph, 50-60 Hz
  • Power output of each motor: 2.2 kW
  • Spindle speed: 2,800 r.p.m.

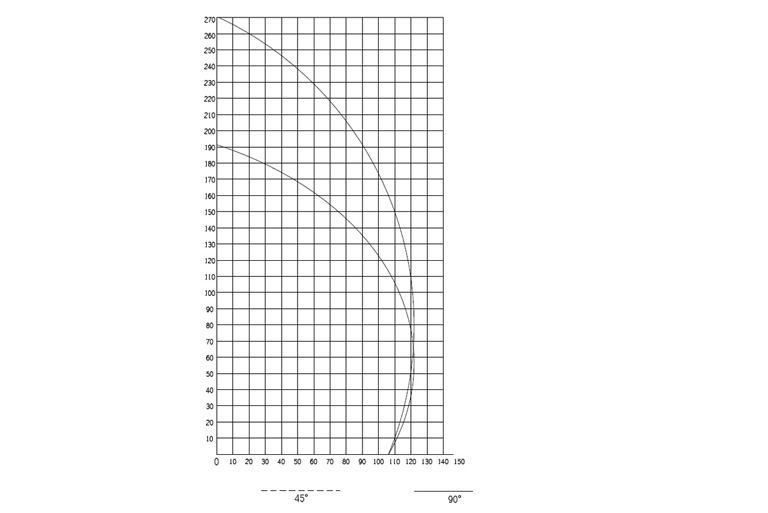

  • Max. profile Width: 120 mm
  • Max. cutting Length: 4,350 mm
  • Min. cutting Length: 450 mm
  • Air pressure: 6-8 bar
  • Air consumption: 45 lt/min. (120 lt/min. cooling system)
  • Machine height: 1,200 mm
  • Machine length: 5,450 mm
  • Machine width: 1,300 mm
  • Machine weight: 710 kg
