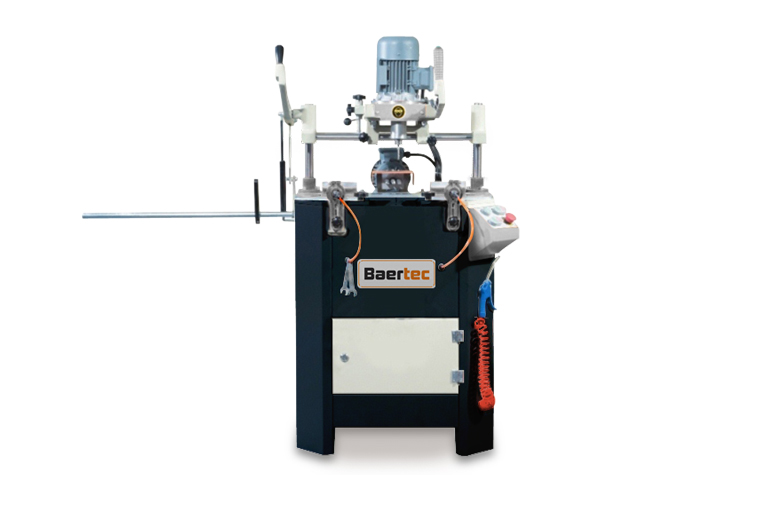

  • 2FR 002 / Trible Drilling Copy Milling Machine

General Specifications:

  • Designed to open the place for handles,espanyoled calals on PVC profiles
  • Clamps devices and angled drain slot routing is equipped with pneumatic system operaion
  • Centering system by the copy -follow stick
  • Three fold drilling unit moves atomatic
  • Start-up or a stop of the engine of copy system by easy pressing button on the handle
  • 3 spindle router for locks,hinks,door handles
  • Manual two stepped copy finger for 6 mm. and 8 mm. cutter diameters.
  • Triple spindle drilling of PVC sash profiles with reinforcement steel by manual feed.

OPTIONAL

  • Left and right length stop system.

Technical Features

  • Power supply: 400 V, 3ph, 50-60 Hz
  • Total power output: 2 kW
  • Power output router: 0.75 kW
  • Power output triple drill: 1.1 kW
  • Router spindle speed: 12,000 r.p.m.
  • Drill spindle speed: 930 r.p.m.
  • Routing capacity: 250 x 100 mm.
  • Stroke: 100 mm.
  • Max. profile section dimensions: 110 mm x 100 mm.
  • Air pressure: 6-8 bar
  • Air consumption: 5 l/min.
